Technical specifications

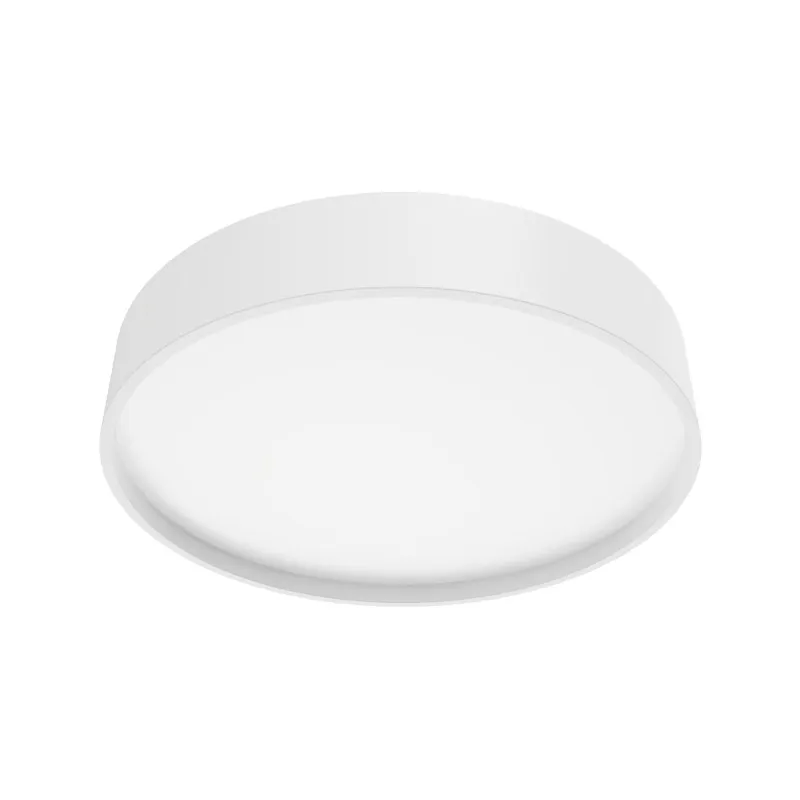

- Type: Surface-mounted LED fixture
- Format: Round, flat strip
- Nominal diameter: 12 in
- Finish: White
- Power supply voltage: 120 V, 50–60 Hz
- Adjustable power: 15 W / 13 W / 11 W / 9 W / 7 W
- Maximum luminous flux: 1000 lm
- Adjustable color temperatures:
- 2700K / 3000K / 3500K / 4000K / 5000K
- Color rendering index (CRI): >80
- Power factor: >0.7
- Beam angle: 115°
- Dimming: ELV and TRIAC
- Dimming range: 10% to 100%
- Surge protection: 2.5 kV (integrated)
- Lifespan: >100,000 hours (L70)
- Operating temperature: -20 °C to 40 °C
- Protection rating: IP20
- Certification:ETL – Wet locations
Construction and dimensions
- Structure: Steel
- Diffuser: White PMMA
- Lighting technology: Multiple LED array for even illumination
- Dimensions:12 in × 2.36 in
- Mounting: Surface
Dimming compatibility (tested)
- Lutron :
DVCL‑153PLH, S600‑P, DV600‑P15, MACL‑153M, CTCL‑153P, MS‑OPS2, PD‑6WCL - Leviton :
6674, 6681
(Each installation is unique, performance may vary depending on load and circuit configuration. Dimmers designed for LED are recommended.)
| Brand | Votatec |
| Shape | Round |
| Diameter | 12" |
| Power (W) | 7W / 9W / 11W / 13W / 15W Sélectionnable |
| Color Temperature (CCT) | 2700K/3000K/3500K/4000K/5000K Selectable |
| color | White |
| Voltage | 120V |
| Dimmable | Yes |
| Approval/certification(s) | cETLus |
